Prime Series
Picxxel’ Heavy duty PRIME SERIES rock breakers are designed to provide efficiencies, minimize machine wear and improve productivity. They are durable, effective for a range of applications, including rock, concrete and slab breaking, road, and sidewalk and curb construction, demolitions, excavations, and more. Picxxel Equipment provides service for their hydraulic breakers and a comprehensive 2-year warranty.
A Breakthrough Performance

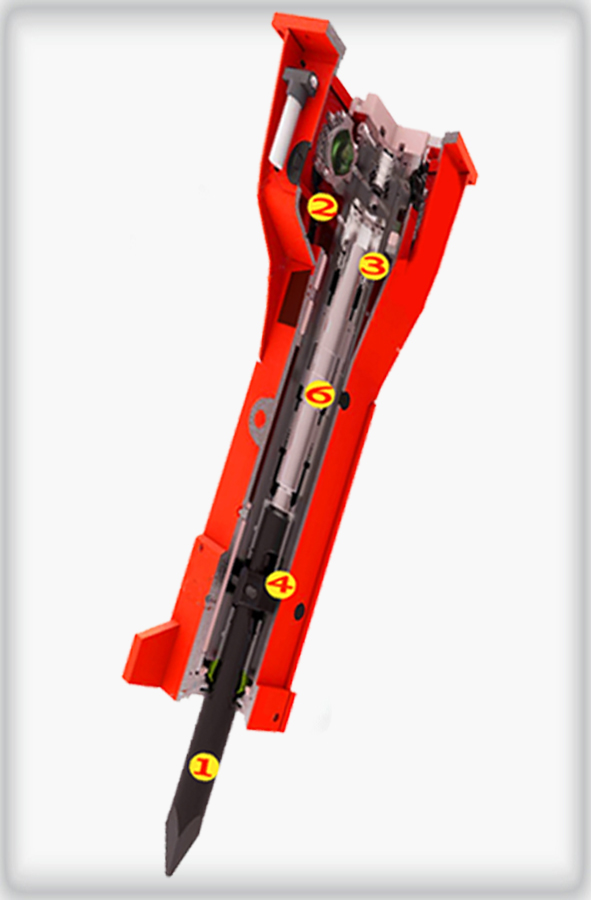

- Working tool:-Selected special high quality steel and the most advanced heat treatment available anywhere ensure outstanding wear and shock resistance.
- Valve-State-of the art machining and design provide the highest standard of reliability available anywhere for this critical assembly.
- Accumulator-Creates additional impact power and releases stress on the hydraulic pump.
- Oval chisel pin-The strong oval shape allows turning over right, left, up and down, distributing wear evenly and extending service life.
- Shank bushing:-Extended length provides a larger bearing surface and minimizes wear.
- Piston-Increased weight and long stroke design produce superior impact energy.
- Auto-Grease Option the auto greases system keep breaker tool lubricated without the hassle delivering just the right amount of grease when it’s needed most.
Picxxel’s Heavy Duty Prime Series Features & Benefits
Easy to Service
With fewer parts integrated into the design, servicing the
hydraulic hammer is both easy and less expensive
Extreme Duty and Wear Bar Kit Option
The extreme duty and wear bar kit offers additional protection
to the wear and tear of your hydraulic rock breaker with a
factory application of cast abrasion strips and wear-resistant
plate with rock claws
Low Operating Cost
High flow rates and low operating pressures minimize heat
generation and hydraulic shock loading for smooth operation
and maximum service life for both the carrier and breaker
Reduce Noise Levels
Boxed housing keeps the noise levels down, essential in high-
density population areas
Prime Series Specifications
| Parameters | MODEL | HD 90 PRIME | HD 150 PRIME | HD 220 PRIME | HD 240 PRIME | HD 340 PRIME |
| Application Carrier | Ton | 3.5.0-7.0 | 11-16 | 18-25 | 20-28 | 30-40 |
| Operating Weight | Kg | 380 | 885 | 1650 | 1890 | 2950 |
| Optimum Oil Flow | L/M | 30-45 | 80-120 | 120-160 | 130-170 | 180-230 |
| Operating Pressure | Kg/Cm | 110-130 | 150-170 | 160-180 | 160-180 | 160-180 |
| Impact Rate | BPM | 500-800 | 400-700 | 400-600 | 400-600 | 300-450 |
| Tool Diameter | Mm | 68 | 100 | 140 | 140 | 155 |
| Impact Power | Kg L-M | 97 | 219 | 363 | 434 | 668 |
